Cryogenic insulation plays a crucial role in industries that handle substances at extremely low temperatures, such as liquefied natural gas (LNG), liquid nitrogen, and liquid oxygen. These substances are typically stored and transported at temperatures as low as -196°C (-321°F), where traditional insulation materials fail to perform. Without proper cryogenic insulation, thermal losses can be significant, leading to operational inefficiencies, safety hazards, and increased costs.
What is Cryogenic Insulation?

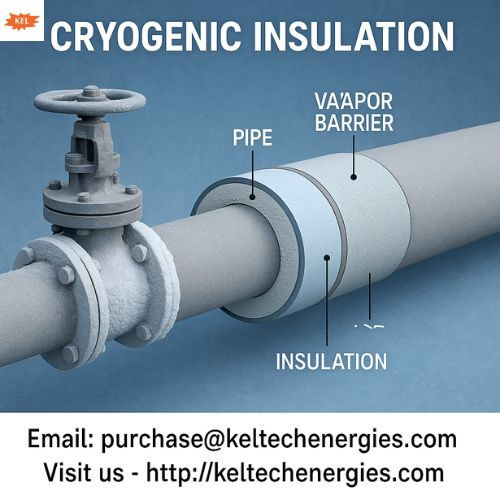

Cryogenic insulation refers to specialized materials and techniques designed to minimize heat transfer in environments involving very low temperatures. Unlike standard insulation used in buildings or general industrial settings, cryogenic insulation must withstand thermal shock, maintain performance in vacuum or low-pressure environments, and resist moisture intrusion. These properties are vital to ensure the safe storage and transfer of cryogenic fluids.
Why Cryogenic Insulation is Important
The primary purpose of cryogenic insulation is to prevent heat ingress, which could lead to the vaporization of cryogenic liquids. When cryogenic liquids absorb heat, they convert back into gases, which can lead to pressure buildup and potential safety issues. Additionally, without proper insulation, the energy needed to maintain low temperatures increases, affecting operational efficiency.
Industries such as aerospace, medical, energy, and food processing rely heavily on cryogenic insulation to protect their systems, improve performance, and reduce costs.
Key Materials Used in Cryogenic Insulation
Several materials are used in cryogenic insulation systems, each offering unique benefits:
- Foam Glass: An inorganic, rigid material that offers excellent thermal resistance and is non-combustible. Foam glass is commonly used in LNG facilities and cold pipelines.
- Perlite: A naturally occurring volcanic glass that expands when subjected to high temperatures, resulting in a lightweight, porous structure ideal for insulation. It’s lightweight, non-combustible, and ideal for use in vacuum-insulated systems.
- Aerogel: One of the most advanced cryogenic insulation materials, aerogels offer extremely low thermal conductivity and are used in applications where space and weight are critical factors.
- Multilayer Insulation (MLI): Commonly utilized in aerospace, this system comprises several layers of reflective films spaced apart to minimize heat transfer, especially in vacuum environments. It is particularly effective in vacuum environments where radiation is the primary mode of heat transfer.
- Vacuum Insulated Panels (VIPs): These panels use vacuum as an insulator and are often used in storage tanks and transportation vessels. They provide exceptional insulation with minimal thickness.
Applications of Cryogenic Insulation
Cryogenic insulation finds applications across various high-tech and industrial sectors:
- LNG Storage and Transportation: LNG must be stored and transported at cryogenic temperatures to remain in liquid form. Specialized tanks and pipelines with cryogenic insulation are essential to prevent boil-off and energy losses.
- Medical and Laboratory Equipment: Devices such as MRI machines and cryogenic freezers require stable low temperatures. Insulation plays a key role in preserving consistent temperatures while optimizing energy use.
- Aerospace and Space Exploration: Rocket fuel and spacecraft systems rely on cryogenic insulation to protect sensitive components and maintain fuel in liquid form.
- Industrial Gas Supply: Gases like nitrogen, oxygen, and argon are stored as cryogenic liquids and delivered to industrial clients. Effective insulation safeguards product quality and minimizes thermal losses.
- Food and Beverage: Cryogenic freezing is used to preserve food quickly while maintaining texture and flavor. Insulated systems ensure efficient cooling during production and transport.
Challenges in Cryogenic Insulation
Cryogenic environments present unique challenges that must be addressed through careful design and material selection:
- Thermal Cycling: Thermal Cycling: The process of continual heating and cooling can weaken materials over time, potentially reducing insulation performance. Cryogenic insulation must be able to withstand these cycles without cracking or losing effectiveness.
- Moisture Ingress: Water vapor can condense and freeze within insulation, reducing thermal performance and causing structural damage. Proper sealing and vapor barriers are essential.
- Mechanical Stress: Insulated systems may be subject to pressure, vibration, and movement, especially in transport. Cryogenic insulation must maintain its integrity under such conditions.
- Installation Complexity: Installing cryogenic insulation often requires specialized skills and equipment. Any error during installation can compromise system performance.
Innovations in Cryogenic Insulation
As industries push for greater efficiency and sustainability, new innovations are emerging in the field of cryogenic insulation. Nanotechnology, for example, is enabling the development of ultra-lightweight and highly effective materials. Composite systems that combine multiple insulation types are also gaining popularity, offering enhanced performance across diverse conditions.
Digital monitoring and smart insulation systems are also being explored. These innovations use sensors and data analytics to detect insulation failure or heat leaks, allowing for proactive maintenance and improved safety.
Conclusion
Cryogenic insulation is a critical component in modern industries that depend on extremely low temperatures. From LNG terminals to space shuttles, proper insulation ensures safety, efficiency, and cost-effectiveness. As technology advances, the materials and methods used in cryogenic insulation continue to evolve, offering more robust, lighter, and smarter solutions. Investing in high-quality cryogenic insulation is not just a technical requirement—it's a strategic move that supports sustainability, performance, and operational excellence.
